V-Rubrics: Visual Faithfulness via Rubric-Based Reinforcement Learning

<strong>Shulin Tian^1,2,&#42;, Minglun Li^3,&#42;, Yuhao Dong^{1,&#8225;,&#42;}, Hao Ding^3,&#42;, Jiarui Yao⁴, Haiwen Diao¹, Jingkang Yang¹, Hongyuan Zhu², Ziwei Liu¹</strong><br>
¹S-Lab, Nanyang Technological University &nbsp; ²A*STAR &nbsp; ³Independent Researcher &nbsp; ⁴UIUC<br>
_{&#42; Equal contribution &nbsp; &#8225; Project lead}

🔍 Overview

V-Rubrics decomposes visual reasoning responses into atomic criteria for
Visual Faithfulness (VF), Reasoning Consistency (RC), and
Instruction Following (IF). These criteria provide structured rewards for
VLM post-training.

<br>

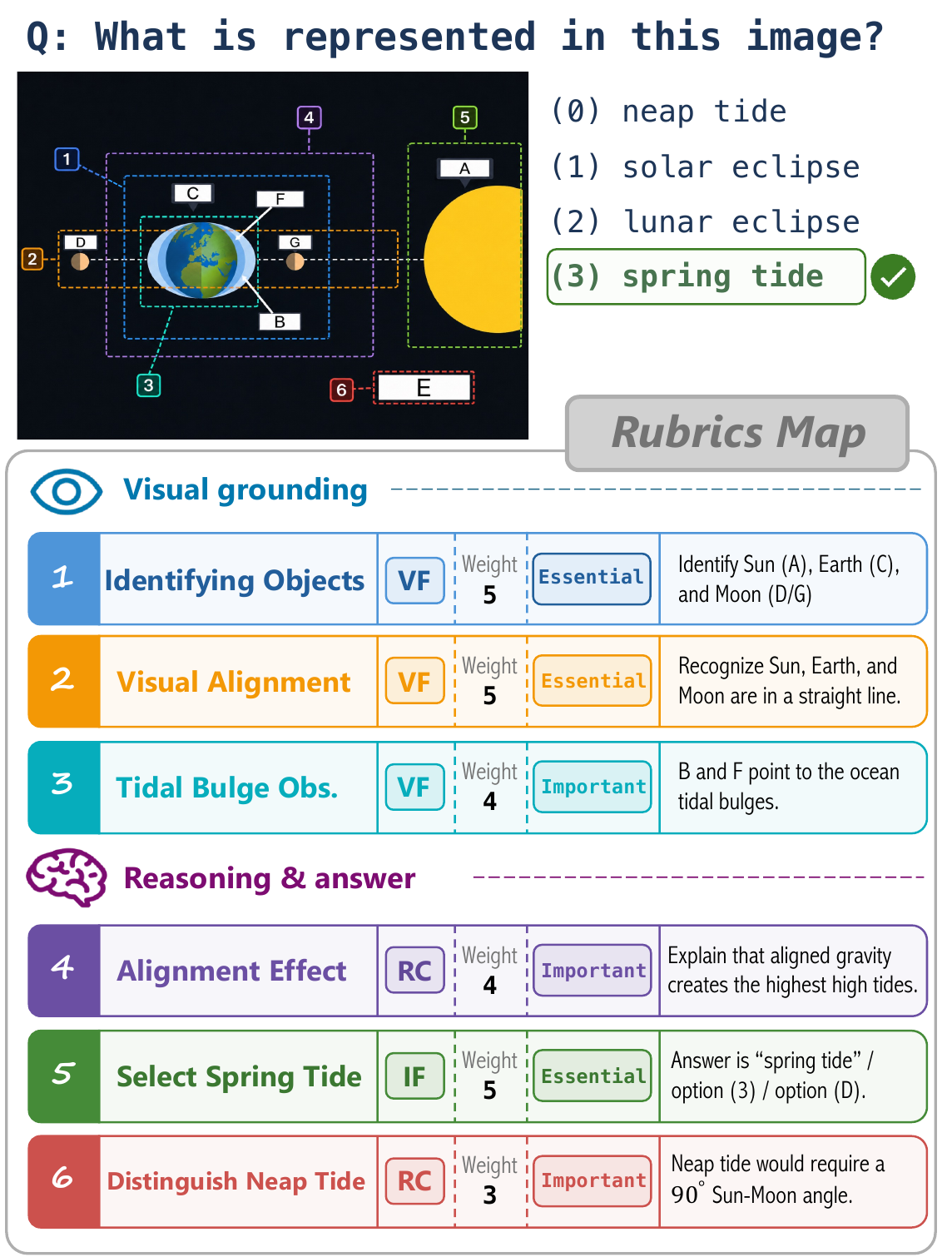

_{<strong>Figure 1.</strong> Rubric-grounded visual reasoning.}

🗂️ Repository layout

v-rubrics/
├── src/v_rubrics/       # CLI, data converters, and reward functions
├── training/sft/        # SFT data preparation and LlamaFactory recipe
├── training/rl/         # VERL launcher and training container
├── evaluation/          # Evaluation runner, config, and summarizer
├── environments/        # Core, development, SFT, RL, and evaluation environments
├── third_party/patches/ # Framework integration patches
└── tests/               # Public behavior and release tests

LlamaFactory, VERL, and VLMEvalKit are cloned at pinned revisions when needed;
their source trees are not vendored in this repository.

⚙️ Installation

The data-conversion CLI requires Python 3.11 or newer:

git clone https://github.com/shulin16/v-rubrics.git
cd v-rubrics

python3 -m venv .venv
source .venv/bin/activate
python -m pip install --upgrade pip
python -m pip install -e .

v-rubrics --version
v-rubrics --help

For SFT, RL, or evaluation, create the corresponding environment:

./scripts/environment/create.sh sft
./scripts/environment/create.sh rl
./scripts/environment/create.sh evaluation

These profiles clone the pinned frameworks and apply the required integration
patches. See environments/README.md for Conda, Mamba,
and Micromamba usage.

🗃️ Prepare RL data

Convert a directory of rubric JSONL shards into the VERL training format:

v-rubrics verl prepare \
  --data-dir /path/to/input-shards \
  --output-dir /path/to/verl-data

The merged output is:

/path/to/verl-data/merged_train.parquet

Use v-rubrics verl prepare --help for input-field and conversion options.

🎓 Supervised fine-tuning

./scripts/environment/create.sh sft
conda activate v-rubrics-sft

bash training/sft/prepare_openmmreasoner.sh

cd third_party/LlamaFactory
llamafactory-cli train \
  ../../training/sft/configs/qwen3_vl_8b_sft_frozen_vision.yaml

See training/sft/README.md for data paths and recipe
overrides.

🚀 GRPO training

The launcher supports two modes:

Create the RL environment and provide the required runtime inputs:

./scripts/environment/create.sh rl
conda activate v-rubrics-rl

export TRAIN_FILE=/path/to/verl-data/merged_train.parquet
export VAL_FILE=/path/to/validation.parquet
export HF_MODEL_PATH=/path/to/sft-checkpoint
export V_RUBRICS_JUDGE_URLS=http://judge-0:8000,http://judge-1:8000
export V_RUBRICS_JUDGE_MODEL=your-served-judge-name

Launch either mode from the repository root:

bash training/rl/launchers/paper_grpo.sh rubric-sequence
bash training/rl/launchers/paper_grpo.sh rubric-prefix

See training/rl/README.md for configuration overrides
and optional judge authentication.

📊 Evaluation

./scripts/environment/create.sh evaluation
conda activate v-rubrics-evaluation

python evaluation/run_paper.py \
  --models /path/to/checkpoint \
  --judge-model /path/to/evaluation-judge \
  --output-base ./outputs

See evaluation/README.md or run
python evaluation/run_paper.py --help for benchmark and GPU options.

🧪 Development

./scripts/environment/create.sh dev
conda activate v-rubrics-dev

python -m pytest -q
python -m ruff check .
./scripts/build_release.sh

🙏 Acknowledgments

V-Rubrics builds on
VERL,
LlamaFactory,
VLMEvalKit,
Qwen3-VL, and
OpenMMReasoner.

📝 Citation

@misc{tian2026vrubrics,
  title         = {V-Rubrics: Visual Faithfulness via Rubric-Based Reinforcement Learning},
  author        = {Shulin Tian and Minglun Li and Yuhao Dong and Hao Ding and Jiarui Yao and Haiwen Diao and Jingkang Yang and Hongyuan Zhu and Ziwei Liu},
  year          = {2026},
  eprint        = {2608.25580},
  archivePrefix = {arXiv},
  primaryClass  = {cs.CV},
  url           = {https://arxiv.org/abs/2608.25580}
}

📬 Contact

For questions, contact {shulin002, yuhao013, ziwei.liu}@ntu.edu.sg.

📄 License

First-party source code is released under the
Apache License 2.0. Third-party frameworks and external artifacts
retain their original licenses.
