📟 PaGeR — Unified Panoramic Geometry Estimation via Multi-View Foundation Models

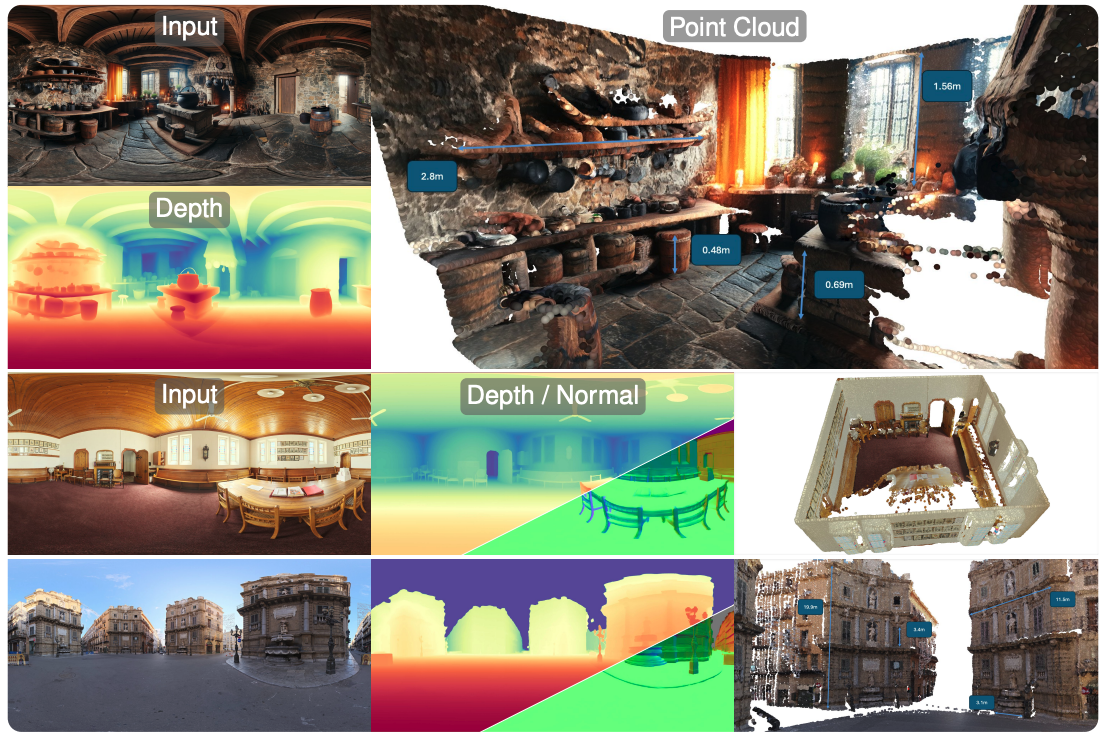

PaGeR (Panoramic Geometry Reconstruction) lifts a perspective 3D
foundation model to the 360° panoramic domain. From a single equirectangular
image, a single forward pass returns:

• Scale-invariant depth at full panoramic resolution.
• Metric depth in metres — recovered by multiplying the SI depth by a
  single per-panorama scale emitted by a separate scale head; PaGeR
  ships two such heads (indoor / outdoor) and the inference pipeline picks
  one per panorama via a CLIP router.
• Surface normals as unit vectors in the world frame of the panorama.
• Sky segmentation for masking unbounded depth regions.

This repository contains the inference and evaluation code that produced
the numbers in our paper, plus a Gradio demo and helpers to export the
predicted geometry as a coloured point cloud.

Release status

• 2026-05-27 — arXiv preprint and project website go live.
• 2026-05-26 — code, three pretrained checkpoints (prs-eth/PaGeR,
  prs-eth/PaGeR-metric-depth, prs-eth/PaGeR-normals) and both datasets
  (prs-eth/ZuriPano, prs-eth/PanoInfinigen) are live on the Hub.

Table of contents

• Release status
• Installation
• Pretrained models
• Gradio demo
• Batch inference
• Evaluation
• Point-cloud export
• Citation
• License

Installation

PaGeR is tested with Python 3.10, PyTorch ≥ 2.0, and CUDA ≥ 12.1
on Linux. Other configurations likely work; these are the ones we run in CI.
PaGeR always projects the input panorama into a fixed 6 × 504 × 504
cubemap before the forward pass, regardless of the input ERP resolution, so
peak VRAM and runtime do not scale with the input size (only the final
cubemap-to-ERP stitch does). At that fixed resolution the unified checkpoint
(backbone + depth/normals/sky/scale heads + CLIP router) needs
≈ 11.5 GiB of VRAM at fp16 on an RTX 4090, so any 3090 / 4090 /
A4000-class GPU with ≥ 12 GB is enough; the depth-only and normals-only
checkpoints fit in ≈ 9.8 GiB.

git clone https://github.com/prs-eth/PaGeR.git
cd PaGeR

# Editable install — exposes `depth_anything_3` as an importable package so
# the backbone's internal absolute imports resolve. The rest of the code
# (Pager, dataloaders, eval scripts) is run directly from the repo root.
pip install -e .

# Gradio demo (optional)
pip install -e ".[app]"

If you hit XFormers wheel issues on older GPUs, see
the upstream FAQ for build
instructions.

Pretrained models

Three checkpoints on the Hub, same ViT-Giant backbone, different heads:

inference.py / app.py accept the alias, a Hub repo id, or a local
directory with model.safetensors + config.yaml; Hub weights are streamed
into the HF cache on first use.

Heads up — indoor / outdoor scale routing. On the unified checkpoint,
--scene_mode auto (default) runs a small CLIP ViT-B/32 classifier on the
cubemap to route each panorama through the matching indoor / outdoor scale head;
pass --scene_mode indoor or outdoor to force one head and reproduce
the per-domain paper numbers. Note that the automatic CLIP-based indoor /
outdoor routing was added after the paper submission — the paper
numbers were produced with --scene_mode indoor / outdoor forced per
dataset, so use those flags to exactly reproduce the reported results.

Gradio demo

python app.py --checkpoint pager     # or prs-eth/PaGeR / a local dir

Open http://127.0.0.1:7860 and drop a panorama into the file picker. The
demo includes example panoramas, switches between map and point-cloud
output, and exposes the same auto / indoor / outdoor scale-head routing as
the CLI. A hosted version is also available on the
PaGeR HuggingFace Space.

Batch inference

inference.py runs the model on every panorama in a chosen evaluation
dataset and writes raw predictions plus side-by-side previews:

python inference.py \
    --config configs/inference.yaml \
    --checkpoint <model_name> \
    --data_path /path/to/datasets \
    --dataset <dataset_name> \
    --results_path results/ \
    --scene_mode auto \
    --generate_eval

Key flags:

• --checkpoint — which model to run. Accepts a short alias for one of the
  released checkpoints — pager (default,
  prs-eth/PaGeR), pager-metric-depth
  (prs-eth/PaGeR-metric-depth),
  pager-normals (prs-eth/PaGeR-normals)
  — or a HuggingFace Hub repo id (<user>/<repo>) or a local directory
  containing model.safetensors + config.yaml.
• --scene_mode {auto,indoor,outdoor} — controls the scale-head routing. On
  the unified checkpoint auto is the default; on single-domain checkpoints
  this flag has no effect.
• --generate_eval — also write per-sample .npz arrays under
  <results>/<modality>/preds/ so the evaluation scripts can pick them up.
• --sky_mask_threshold, --sky_mask_softness, --sky_mask_open_kernel —
  tune the soft sky-fill applied to the depth / normals outputs.

Expected dataset layout under --data_path:

<data_path>/
├── Matterport3D360/
├── Stanford2D3DS/
├── Structured3D/
└── Replica360_4K/

Download / access pages for each dataset:

The three eval-only datasets (Matterport3D360, Stanford2D3DS, Replica360_4K)
are gated behind the upstream EULAs; please obtain them from the linked
source pages. See NOTICE for the per-dataset licenses and
obligations, and each dataloader in dataloaders/ for the
exact on-disk layout it expects (image / depth / mask / normals naming).

Evaluation

evaluation/depth_evaluation.py scores the cached depth predictions against
ground truth, on Matterport3D360, Stanford2D3DS or ZuriPano. Run
it once per dataset:

# Metric depth (in-metres, no alignment).
python evaluation/depth_evaluation.py \
    --data_path /path/to/datasets \
    --dataset <dataset-name> \
    --pred_path results \
    --alignment_type metric

# Scale-invariant depth (least-squares scale alignment).
python evaluation/depth_evaluation.py \
    --data_path /path/to/datasets \
    --dataset <dataset-name> \
    --pred_path results \
    --alignment_type scale

Reported metrics: AbsRel, RMSE (linear), δ₁, averaged uniformly
over the valid ERP pixels. Results land in
<pred_path>/depth/evaluation_metrics_<alignment>.txt.

For surface normals on Structured3D:

python evaluation/normals_evaluation.py \
    --data_path /path/to/datasets \
    --dataset Structured3D \
    --pred_path results

To quantify cubemap-stitching artefacts in the depth predictions (Table 4a in
the paper) on Replica360_4K:

python evaluation/seams_evaluation.py \
    --data_path /path/to/datasets \
    --dataset Replica360_4K \
    --pred_path results

Reports the three metrics seam_defect_density, seam_prevalence,
seam_severity — see the appendix of our paper for the exact definitions.

Point-cloud export

python generate_point_cloud.py \
    --data_path /path/to/datasets \
    --dataset <dataset-name> \
    --depth_path results \
    --color_modality rgb \
    --max_points 1000000

GLBs land under <depth_path>/depth/point_clouds/ (or
<depth_path>/normals/point_clouds/ when colouring by predicted normals).
Pass --color_modality normals to colour by predicted normals.

Citation

If you use PaGeR, the released checkpoints, or the ZüriPano / PanoInfinigen
datasets in your work, please cite:

@article{bozic2026pager,
  title   = {Unified Panoramic Geometry Estimation via Multi-View Foundation Models},
  author  = {Bozic, Vukasin and Slavkovic, Isidora and Narnhofer, Dominik and
             Metzger, Nando and Rozumny, Denis and Schindler, Konrad and
             Kalischek, Nikolai},
  journal = {arXiv preprint arXiv:2605.26368},
  year    = {2026}
}

License

PaGeR is released under three separate licenses, one per artifact
class, because the training and modeling stack is not uniform.

The non-commercial restriction on the weights is inherited from the
Depth Anything 3
ViT-Giant backbone (CC BY-NC 4.0) and from the non-commercial / research-only
terms of PanoInfinigen — urban subset. See NOTICE for the full
third-party attribution list and per-dataset breakdown.

Acknowledgements

PaGeR builds on top of
Depth Anything 3 —
the backbone and the multi-view inference code under
src/depth_anything_3/ are derived from that
project. The training script is adapted from
Marigold-E2E-FT.
The indoor/outdoor classifier uses OpenAI CLIP via
open_clip.
