Automating Kubernetes Cluster on AWS using Ansible and deploying WordPress with MySQL on k8s cluster

View all Roadmaps  ·  Best Practices  ·  Questions

USE-CASE

1. Create Ansible Playbook to launch 3 AWS EC2 Instance
2. Create Ansible Playbook to configure Docker over those instances
3. Create Playbook to configure K8S Master, K8S Worker Nodes on the above created EC2 Instances using kubeadm
4. Launch a WordPress and MySQL database connected to it in the respective slaves
5. Expose the WordPress pod and the client able to hit the WordPress IP with its respective port.

Pre-requisite: (FOR RHEL-8)

1. Controller node should be setup with ansible installation and configuration, when controller node is RHEL8
2. Create one IAM user having Administrator Access and note down their access key and secret key
3. Create one Key pair in (.pem) format on AWS Cloud, download it in your local system and transfer it over RHEL-8 through WinSCP.

STEP 1 : Ansible Installation and Configuration

Install Ansible on Base OS (RHEL8), configure ansible configuration file.
To do this use below commands-

yum install python3 -y

pip3 install ansible -y

vim /etc/ansible/ansible.cfg

NOTE: Python should be installed on your OS to setup Ansible.
Write below commands in your configuration ansible.cfg file. For this you can prefer any editor like vi, vim, gedit-

[defaults]
inventory=/root/ip.txt  #inventory path
host_key_checking=False
command_warnings=False
deprecation_warnings=False
ask_pass=False
roles_path= /root/roles      #roles path
force_valid_group_names = ignore
private_key_file= /root/awskey.pem   #your key-pair
remote_user=ec2-user

[privilege_escalation]
become=True
become_method=sudo
become_user=root
become_ask_pass=False

STEP 2 : Create Ansible Roles

🔶 Go inside your roles workspace

cd /roles

Use Below commands to create 3 different roles

1. For Kubernetes Cluster
2. For Kubernetes Master
3. For Kubernetes Slaves


   # ansible-galaxy init

ansible-galaxy init kube_cluster
ansible-galaxy init k8s_master
ansible-galaxy init k8s_slave
ansible-galaxy init wordpress_mysql

### STEP 3 : Write role for Kubernetes Cluster
🔶 Go inside the tasks folder. We have to write entire tasks inside this folder

cd /roles/kube_cluster/tasks

vim main.yml

> 🔶 I am going to create cluster over `Amazon Linux instances`.
Write below source code inside it-

• name: Installing boto & boto3 libraries
  pip:
  name: "{{ item }}"
  state: present
  loop: "{{ lib_names }}"

• name: Creating Security Group for K8s Cluster
  ec2_group:
  name: "{{ sg_name }}"
  description: Security Group for allowing all port
  region: "{{ region_name }}"
  aws_access_key: "{{ access_key }}"
  aws_secret_key: "{{ secret_key }}"
  rules:

  • proto: all
    cidr_ip: 0.0.0.0/0
    rules_egress:
  • proto: all
    cidr_ip: 0.0.0.0/0

• name: Launching three EC2 instances on AWS
  ec2:
  key_name: "{{ keypair }}"
  instance_type: "{{ instance_flavour }}"
  image: "{{ ami_id }}"
  wait: true
  group: "{{ sg_name }}"
  count: 1
  vpc_subnet_id: "{{ subnet_name }}"
  assign_public_ip: yes
  region: "{{ region_name }}"
  state: present
  aws_access_key: "{{ access_key }}"
  aws_secret_key: "{{ secret_key }}"
  instance_tags:
  Name: "{{ item }}"
  register: ec2
  loop: "{{ instance_tag }}"

• name: Add 1st instance to host group ec2_master
  add_host:
  hostname: "{{ ec2.results[0].instances[0].public_ip }}"
  groupname: ec2_master

• name: Add 2nd instance to host group ec2_slave
  add_host:
  hostname: "{{ ec2.results[1].instances[0].public_ip }}"
  groupname: ec2_slave

• name: Add 3rd instance to host group ec2_slave
  add_host:
  hostname: "{{ ec2.results[2].instances[0].public_ip }}"
  groupname: ec2_slave

• name: Waiting for SSH
  wait_for:
  host: "{{ ec2.results[2].instances[0].public_dns_name }}"
  port: 22
  state: started

#### Explanation of Source Code:
1. We are using `pip` module to install two packages — `boto` & `boto3`, because these packages has the capability to contact to AWS to launch the EC2 instances.

2. `ec2_group` module to create Security Group on AWS.

3. `ec2` module to launch instance on AWS.
> `register` keyword will store all the Metadata in a variable called `ec2` so that in future we can parse the required information from it.

> `loop` which again using one variable which contains one list.

> `item` keyword we are calling the list values one after another.

> `add_host` module which has the capability to create one dynamic inventory while running the playbook.

> `hostname` keyword tells the values to store in the dynamic host group.

> `wait_for` module to hold the playbook for few seconds till all the node’s SSH service started.

> `access key` and `secret key` are stored inside `vault` files to hide it from other users.

🔶 Go inside the vars folder. We have to write entire variables inside this folder.

> We can directly mention variables inside tasks file but it is good practice to write them inside `vars` files so that we can change according to our requirements.

cd /roles/kube_cluster/vars

vim main.yml

Write below source code inside it-

instance_tag:

• master
• slave1
• slave2

lib_names:

• boto
• boto3

sg_name: Allow_All_SG
region_name: ap-south-1
subnet_name: subnet-49f0e521
ami_id: ami-010aff33ed5991201
keypair: awskey
instance_flavour: t2.small

### STEP 4 : Write role for Kubernetes Master
🔶 Following are the steps which have to include in role for configuring the k8s master-

1. Installing docker and iproute-tc

2. Configuring the Yum repo for Kubernetes

3. Installing kubeadm, kubelet & kubectl program

4. Enabling the docker and Kubernetes

5. Pulling the config images

6. Configuring the docker daemon.json file

7. Restarting the docker service

8. Configuring the Ip tables and refreshing sysctl

9. Starting kubeadm service

10. Setting HOME directory for .kube Directory

11. Copying file config file

12. Installing Addons e.g flannel

13. Creating the token

14. Store output of token in a file.

🔶 Go inside the tasks folder. We have to write entire tasks inside this folder

cd /roles/k8s_master/tasks

vim main.yml

Write below source code inside it-

• name: "Installing docker and iproute-tc"
  package:
  name:

  • docker
  • iproute-tc
    state: present

• name: "Configuring the Yum repo for kubernetes"
  yum_repository:
  name: kubernetes
  description: Yum for k8s
  baseurl: https://packages.cloud.google.com/yum/repos/kubernetes-el7-x86_64
  enabled: yes
  gpgcheck: yes
  repo_gpgcheck: yes
  gpgkey: https://packages.cloud.google.com/yum/doc/yum-key.gpg https://packages.cloud.google.com/yum/doc/rpm-package-key.gpg

• name: "Installing kubeadm,kubelet kubectl program"
  yum:
  name:

  • kubelet
  • kubectl
  • kubeadm
    state: present

• name: "Enabling the docker and kubenetes"
  service:
  name: "{{ item }}"
  state: started
  enabled: yes
  loop:

  • kubelet
  • docker

• name: "Pulling the config images"
  shell: kubeadm config images pull

• name: "Confuring the docker daemon.json file"
  copy:
  dest: /etc/docker/daemon.json
  content: |
  {
  "exec-opts": ["native.cgroupdriver=systemd"]
  }

• name: "Restarting the docker service"
  service:
  name: docker
  state: restarted

• name: "Configuring the Ip tables and refreshing sysctl"
  copy:
  dest: /etc/docker/daemon.json
  content: |
  {
  "exec-opts": ["native.cgroupdriver=systemd"]
  }

• name: "systemctl"
  shell: "sysctl --system"

• name: "Starting kubeadm service"
  shell: "kubeadm init --ignore-preflight-errors=all"

• name: "Creating .kube Directory"
  file:
  path: $HOME/.kube
  state: directory

• name: "Copying file config file"
  shell: "cp -i /etc/kubernetes/admin.conf $HOME/.kube/config"
  ignore_errors: yes

• name: "Installing Addons e.g flannel"
  shell: "kubectl apply -f https://raw.githubusercontent.com/coreos/flannel/master/Documentation/kube-flannel.yml"

• name: "Creating the token"
  shell: "kubeadm token create --print-join-command"
  register: token

• debug:
  msg: "{{ token.stdout }}"

Explanation of Source Code:

1.We need to install kubeadm program on our master node to setup K8s cluster.

2. We are installing Docker, Kubeadm & iproute-tc packages on our Master Instance.

3. service module is used to start the docker & kubelet service.

4. command module to run kubeadm command which will pull all the Docker Images required to run Kubernetes Cluster.

5. We need to change our Docker default cgroup to systemd, otherwise kubeadm won't be able to setup K8s cluster. To do that at first using copy module we are creating one file /etc/docker/daemon.json & putting some content in it.

6. Next using command module we are initializing the cluster & then using shell module we are setting up kubectl command on our Master Node.

7. Next using command module I deployed Flannel on the Kubernetes Cluster so that it create the overlay network setup.

8. Also the 2nd command module is used to get the token for the slave node to join the cluster.

9. Using register I stored the output of 2nd command module in a variable called token. Now this token variable contain the command that we need to run on slave node, so that it joins the master node.

STEP 5 : Write role for Kubernetes Slaves

🔶 Following are the steps which have to include in role for configuring the k8s slaves-

1. Installing docker and iproute-tc

2. Configuring the Yum repo for Kubernetes

3. Installing kubeadm,kubelet kubectl program

4. Enabling the docker and Kubernetes

5. Pulling the config images

6. Configuring the docker daemon.json file

7. Restarting the docker service

8. Configuring the IP tables and refreshing sysctl

9. Copy the join command which we store while configuring master

🔶 Go inside the tasks folder. We have to write entire tasks inside this folder

cd /roles/k8s_slave/tasks

vim main.yml

Write below source code inside it-

- name: "Installing docker and iproute-tc"
  package:
     name:
         - docker
         - iproute-tc
     state: present

- name: "Configuring the Yum repo for kubernetes"
  yum_repository:
     name: kubernetes
     description: Yum for k8s
     baseurl: https://packages.cloud.google.com/yum/repos/kubernetes-el7-\$basearch
     enabled: yes
     gpgcheck: yes
     repo_gpgcheck: yes
     gpgkey: https://packages.cloud.google.com/yum/doc/yum-key.gpg https://packages.cloud.google.com/yum/doc/rpm-package-key.gpg

- name: "Installing kubeadm,kubelet kubectl program"
  yum:
     name:
        - kubelet
        - kubectl
        - kubeadm
     state: present

- name: "Enabling the docker and kubenetes"
  service:
     name: "{{ item }}"
     state: started
     enabled: yes
  loop:
        - kubelet
        - docker

- name: "Pulling the config images"
  shell: kubeadm config images pull

- name: "Confuring the docker daemon.json file"
  copy:
    dest: /etc/docker/daemon.json
    content: |
      {
      "exec-opts": ["native.cgroupdriver=systemd"]
      }

- name: "Restarting the docker service"
  service:
     name: docker
     state: restarted

- name: "Configuring the Ip tables and refreshing sysctl"
  copy:
    dest: /etc/sysctl.d/k8s.conf
    content: |
      net.bridge.bridge-nf-call-ip6tables = 1
      net.bridge.bridge-nf-call-iptables = 1

- name: "systemctl"
  shell: "sysctl --system"

- name: joining to Master
  command: "{{ hostvars[groups['ec2_master'][0]]['token']['stdout'] }}"

STEP 6 : Write role for Wordpress and MySQL Setup

🔶 Following are the steps which have to include in role for configuring the Wordpress-

🔶 Go inside the files folder of wordpress_mysql role. We have to write entire configuration files inside this folder.
🔶 We have to create 5 files here to create pods, setup of PVC and secrets' file.

cd /roles/wordpress_mysql/files

vim wordpress.yml

vim pvc_wordpress.yml

vim mysql.yml

vim pvc_mysql.yml

vim secret.yml

🔶 Write Below source to configure Wordpress installation part inside wordpress.yml file

apiVersion: v1
kind: Service
metadata:
  name: wordpress
  labels:
    app: wordpress
spec:
  ports:
    - port: 80
      nodePort: 30333
  selector:
    app: wordpress
    tier: frontend
  type: LoadBalancer
---
apiVersion: apps/v1 # for versions before 1.9.0 use apps/v1beta2
kind: Deployment
metadata:
  name: wordpress
  labels:
    app: wordpress
spec:
  selector:
    matchLabels:
      app: wordpress
      tier: frontend
  strategy:
    type: Recreate
  template:
    metadata:
      labels:
        app: wordpress
        tier: frontend
    spec:
      volumes:
      - name: wordpress-persistent-storage
        persistentVolumeClaim:
          claimName: wordpress-pv-claim
      containers:
      - image: wordpress:4.8-apache
        name: wordpress
        env:
        - name: WORDPRESS_DB_HOST
          value: wordpress-mysql
        - name: WORDPRESS_DB_PASSWORD
          valueFrom:
            secretKeyRef:
              name: mysqlsecret
              key: password
        ports:
        - containerPort: 80
          name: wordpress
        volumes:
        volumeMounts:
        - name: wordpress-persistent-storage
          mountPath: /var/www/html

🔶 Write Below source to setup PVC for Wordpress in pvc_wordpress.yml file.

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
   name: wordpress-pv-claim
   labels:
        app: wordpress
        tier: frontend
spec:
   storageClassName: ""
   resources:
        requests:
             storage: 1Gi
   accessModes:
     - ReadWriteOnce
---

apiVersion: v1
kind: PersistentVolume
metadata:
  name: wordpress-pv
spec:
  storageClassName: ""
  capacity:
     storage: 1Gi
  accessModes:
    - ReadWriteOnce
  hostPath:
    path: /wordpressdata

🔶 Write Below source to configure MYSQL installation part inside mysql.yml file

apiVersion: v1
kind: Service
metadata:
  name: wordpress-mysql
  labels:
    app: wordpress
spec:
  ports:
    - port: 3306
  selector:
    app: wordpress
    tier: mysql
  clusterIP: None
---
apiVersion: apps/v1 # for versions before 1.9.0 use apps/v1beta2
kind: Deployment
metadata:
  name: wordpress-mysql
  labels:
    app: wordpress
spec:
  selector:
    matchLabels:
      app: wordpress
      tier: mysql
  strategy:
    type: Recreate
  template:
    metadata:
      labels:
        app: wordpress
        tier: mysql
    spec:
      volumes:
      - name: mysql-persistent-storage
        persistentVolumeClaim:
          claimName: mysql-pv-claim
      containers:
      - image: mysql:5.6
        name: mysql
        env:
        - name: MYSQL_ROOT_PASSWORD
          valueFrom:
            secretKeyRef:
              name: mysqlsecret
              key: password
        - name: MYSQL_USER
          value: udit
        - name: MYSQL_DATABASE
          value: task23db
        ports:
        - containerPort: 3306
          name: mysql
        volumeMounts:
        - name: mysql-persistent-storage
          mountPath: /var/lib/mysql

🔶 Write Below source to setup PVC for MySQL in pvc_mysql.yml file.

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
   name: mysql-pv-claim
   labels:
        app: wordpress
        tier: mysql
spec:
   storageClassName: ""
   resources:
        requests:
             storage: 1Gi
   accessModes:
     - ReadWriteOnce
---

apiVersion: v1
kind: PersistentVolume
metadata:
  name: msql-pv
spec:
  storageClassName: ""
  capacity:
     storage: 1Gi
  accessModes:
    - ReadWriteOnce
  hostPath:
    path: /mysqldata

🔶 Lastly, create a secrete file secret.yml which will contain the password of the MySQL database-

apiVersion: v1
kind: Secret
metadata:
  name: Suraj
data:
   password: Mysqlpass@2001

🔶 Go inside the tasks folder. We have to write entire tasks inside this folder

cd /roles/wordpress_mysql/tasks

vim main.yml

🔶 Write below source code inside it-

  - name: Copying Wordpress and MySQL files to K8s Master Node
    copy:
        src: "{{ item }}"
        dest: /root/
    loop:
        - mysql.yml
        - pvc_mysql.yml
        - pvc_wordpress.yml
        - secret.yml
        - wordpress.yml

  - name: Creating directory over which MySQL container mounts the PersistentVolume at /var/lib/mysql.
    file:
        path: /mysqldata
        state: directory

  - name: Creating directory over which WordPress container mounts the PersistentVolume at /var/www/html.
    file:
        path: /wordpressdata
        state: directory

  - name: Configuration and Setup of Wordpress and MySQL
    shell: "kubectl create -f /root/{{ item }}"
    loop:
        - mysql.yml
        - pvc_mysql.yml
        - pvc_wordpress.yml
        - wordpress.yml

STEP 7 : Write Ansible Vault Files

🔶 Go to your roles workspace
🔶 Run below command and create vault file

# ansible-vault create .yml

ansible-vault create cred.yml

🔶 It will ask to provide one vault password & provide as per your choice.
🔶 Then, open it with editor, create two variables in this file & put your AWS access key & secret key as values.
For example:

access_key: ABCDEFGHIJKLMN
secret_key: abcdefghijklmn12345

🔶 Save the file with command (:wq).

STEP 8 : Create Setup file

Now it's finally the time to create the setup.yml file inside same workspace which we gonna run to setup this entire infrastructure on AWS.

- hosts: localhost
  gather_facts: no
  vars_files:
         - cred.yml
  tasks:
         - name: "Running kube_cluster role"
           include_role:
                name: kube_cluster

- hosts: ec2_master
  gather_facts: no
  tasks:
    - name: Running K8s_Master Role
      include_role:
        name: k8s_master

- hosts: ec2_slave
  gather_facts: no
  tasks:
    - name: Running K8s_Slave Role
      include_role:
        name: k8s_slave

- hosts: ec2_master
  gather_facts: no
  tasks:
    - name: Running Wordpress-MySQL Role
      include_role:
        name: wordpress_mysql

🔶 Write proper hostname, vault file name and role name.

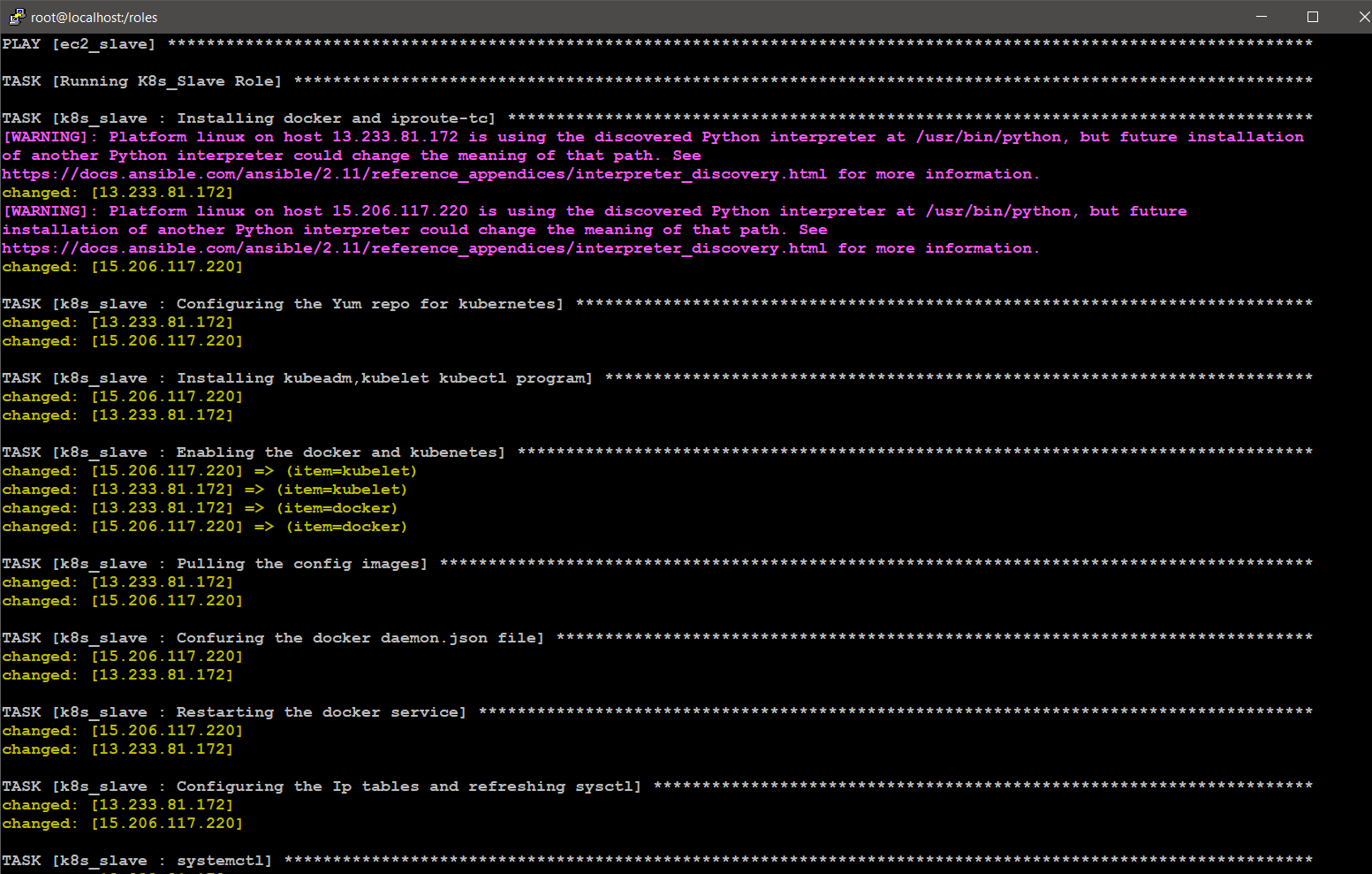

STEP 9 : RUN your Ansible Playbook

🔶 use below commands to run your ansible playbook.

ansible-playbook setup.yml --ask-vault-pass

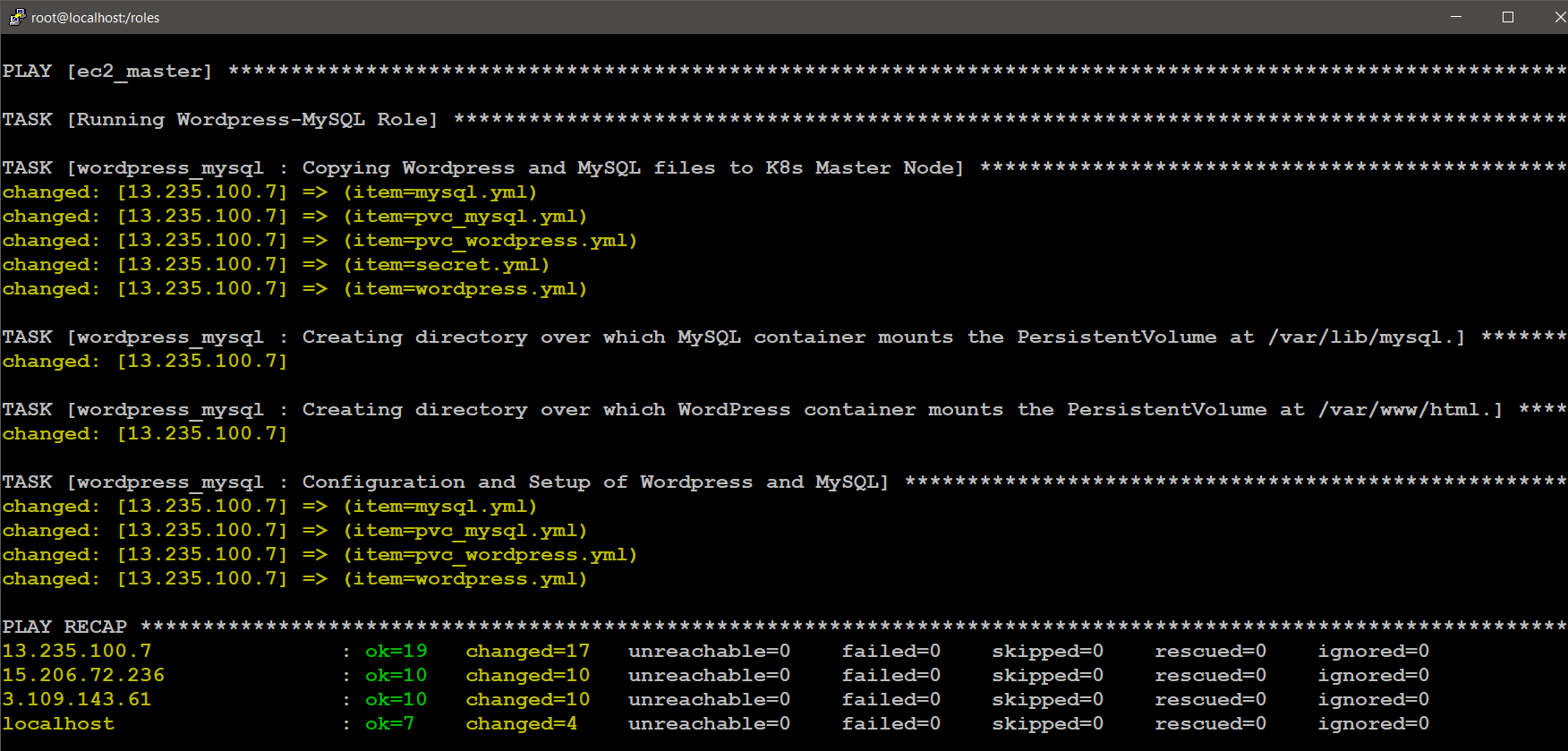

🔶 Next it will prompt you to pass the password of your Ansible Vault (cred.yml file), provide your password.

YAY!, IT RUN SUCCESSFULLY AND SETUP ENTIRE INFRASTRUCTURE

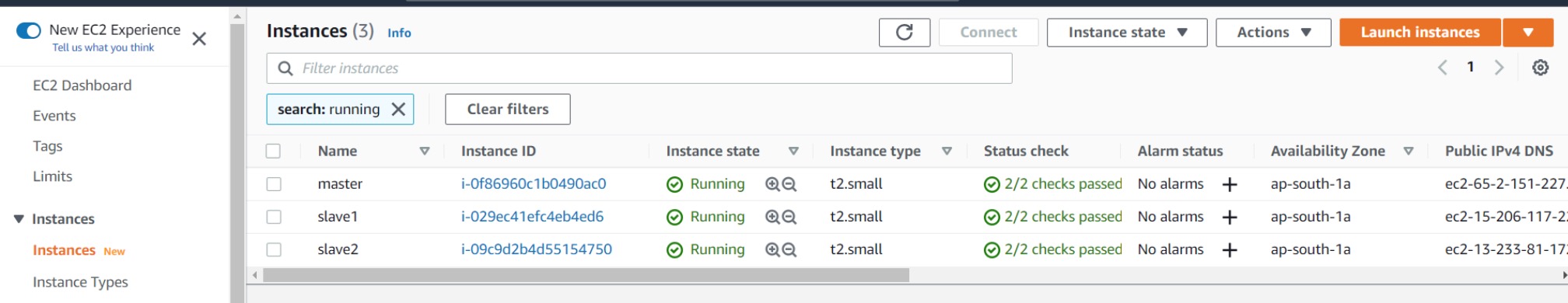

STEP 8 : TESTING...

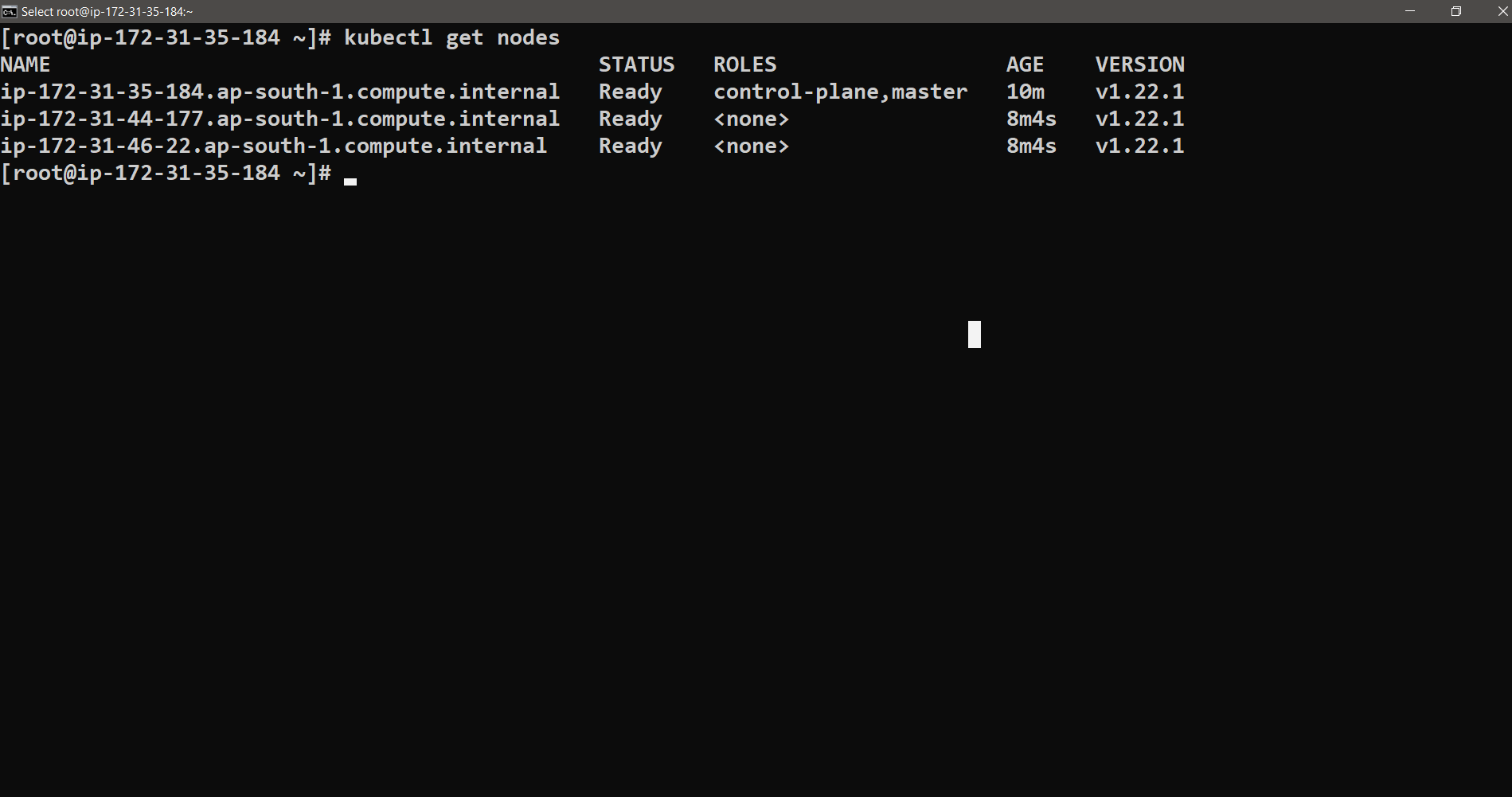

🔶 Now lets check our multi-node cluster is using below commands

kubectl get nodes

🚀 I'm are always open to your feedback. Please contact as bellow information:

[Contact ]

• [Name: nho Luong]
• Skype
• Github
• Linkedin
• Email Address

License

• Nho Luong (c). All Rights Reserved.🌟
