Texas Instrument - TRF7970A (SPI)

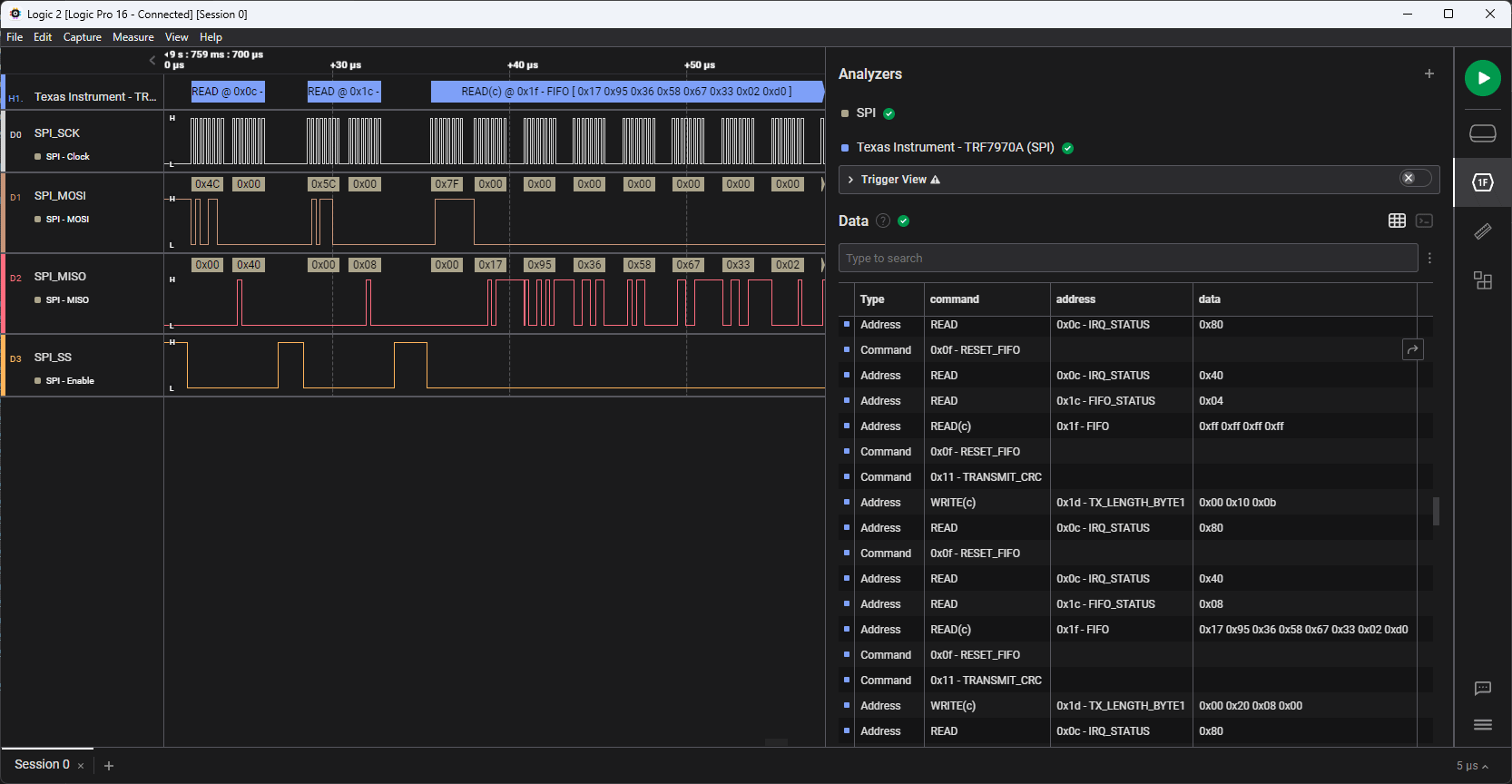

High Level Analyzer for Texas Instrument TRF7970A NFC chip on SPI bus with Saleae Logic analyzer

SPI settings

• Significant Bit: MSB
• Bits per Transfer: 8
• Clock State: CPOL = 0
• Clock Phase: CPHA = 1
• Enable Line: Active Low

References

• https://www.ti.com/product/TRF7970A
• https://www.saleae.com

Author

Benjamin DELPY gentilkiwi, you can contact me on Twitter ( @gentilkiwi ) or by mail ( benjamin [at] gentilkiwi.com )

Licence

CC BY 4.0 licence - https://creativecommons.org/licenses/by/4.0/
