NXP - PN532 (SPI)

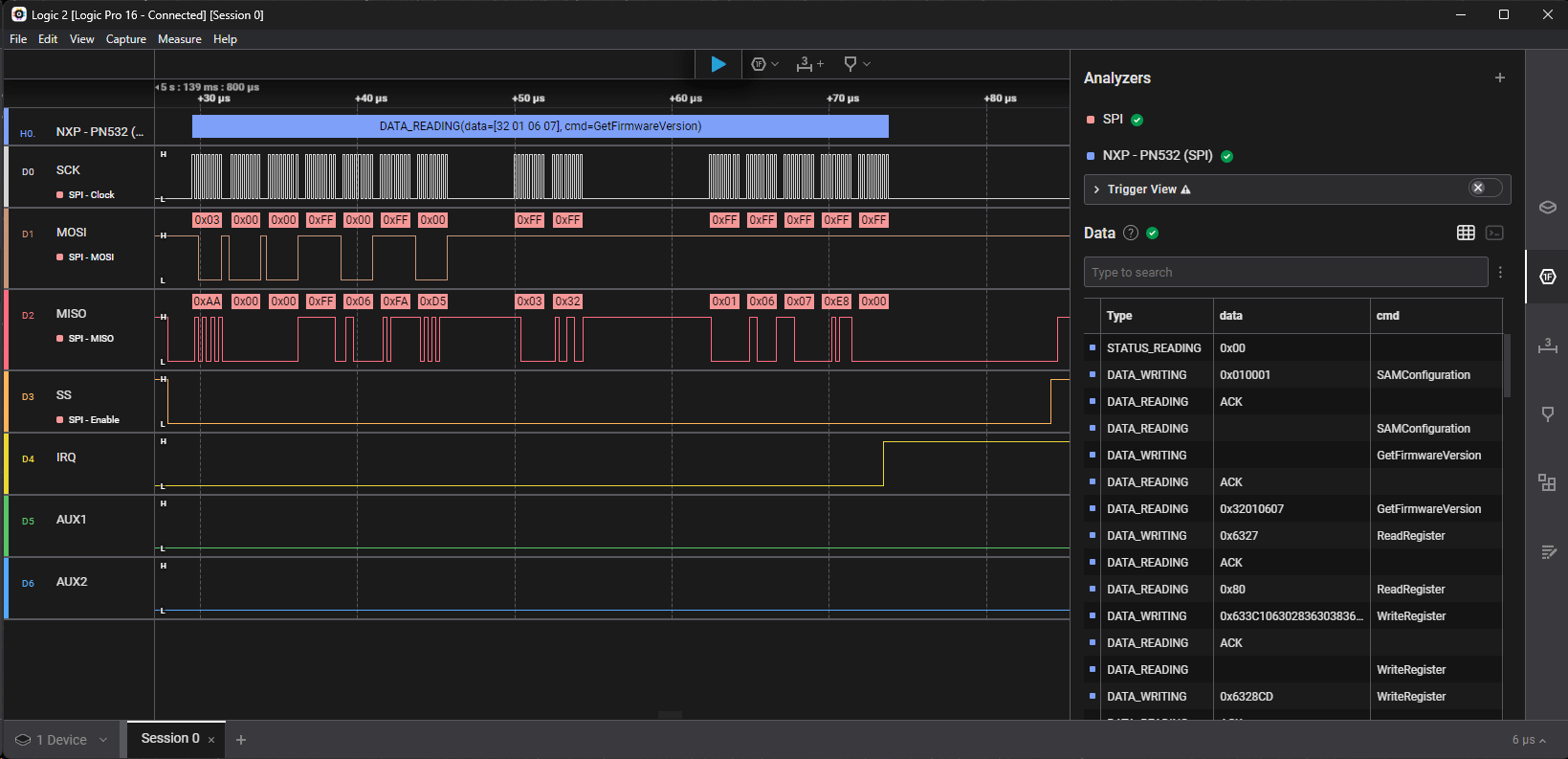

High Level Analyzer for NXP PN532 NFC chip on SPI bus with Saleae Logic analyzer

SPI settings

• Significant Bit: LSB
• Bits per Transfer: 8
• Clock State: CPOL = 0
• Clock Phase: CPHA = 0
• Enable Line: Active Low

References

• https://www.nxp.com/products/rfid-nfc/nfc-hf/nfc-readers/nfc-integrated-solution:PN5321A3HN
• https://www.nxp.com/part/PN5321A3HN
• https://www.saleae.com

Author

Benjamin DELPY gentilkiwi, you can contact me on Twitter ( @gentilkiwi ) or by mail ( benjamin [at] gentilkiwi.com )

Licence

CC BY 4.0 licence - https://creativecommons.org/licenses/by/4.0/
