Falcon OpenShift Console Plugin

This is a dynamic plugin for the Red Hat OpenShift console. The plugin provides additional visibility
to the Falcon operator and Falcon-protected virtual machines and pods.

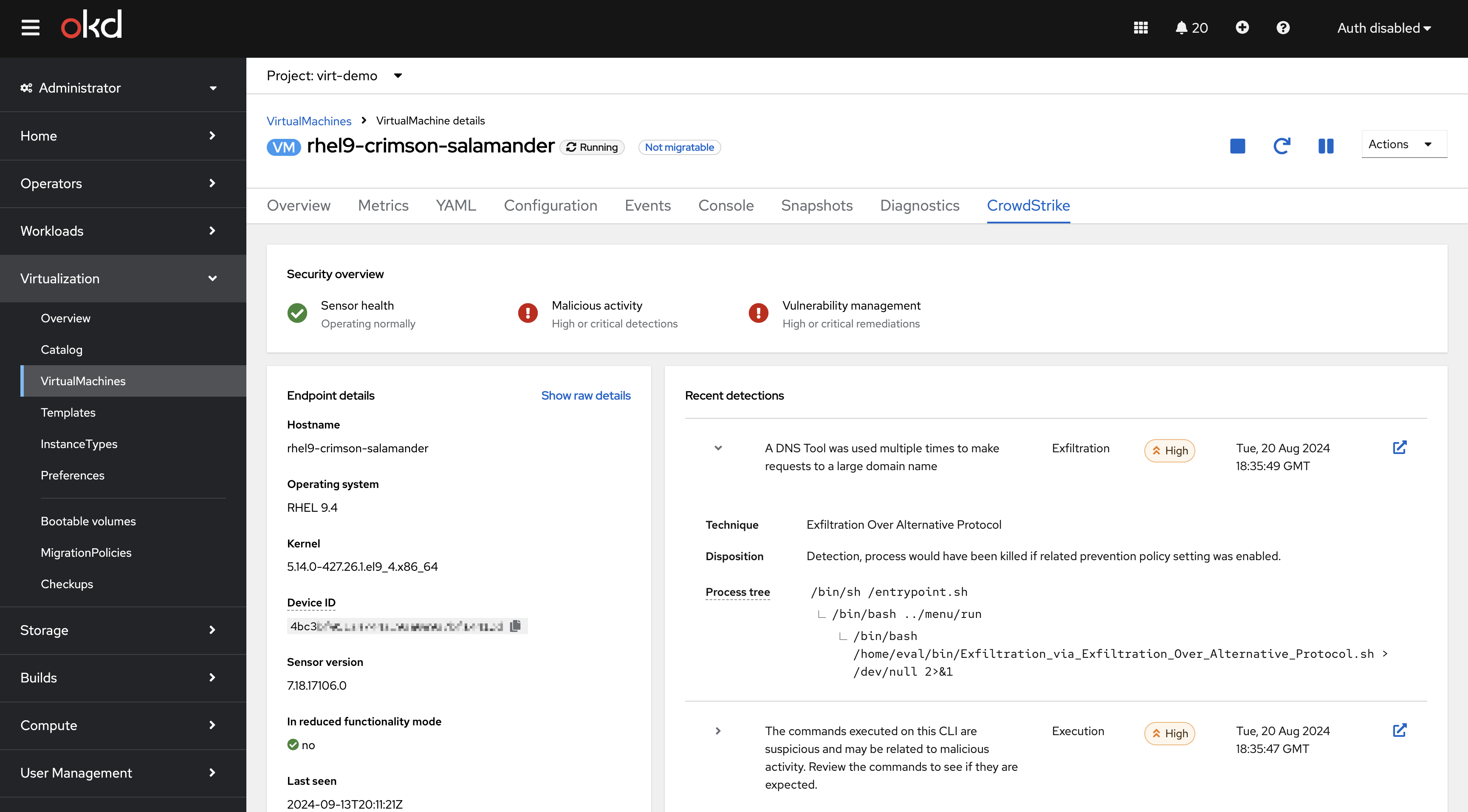

Extension to the VirtualMachine page

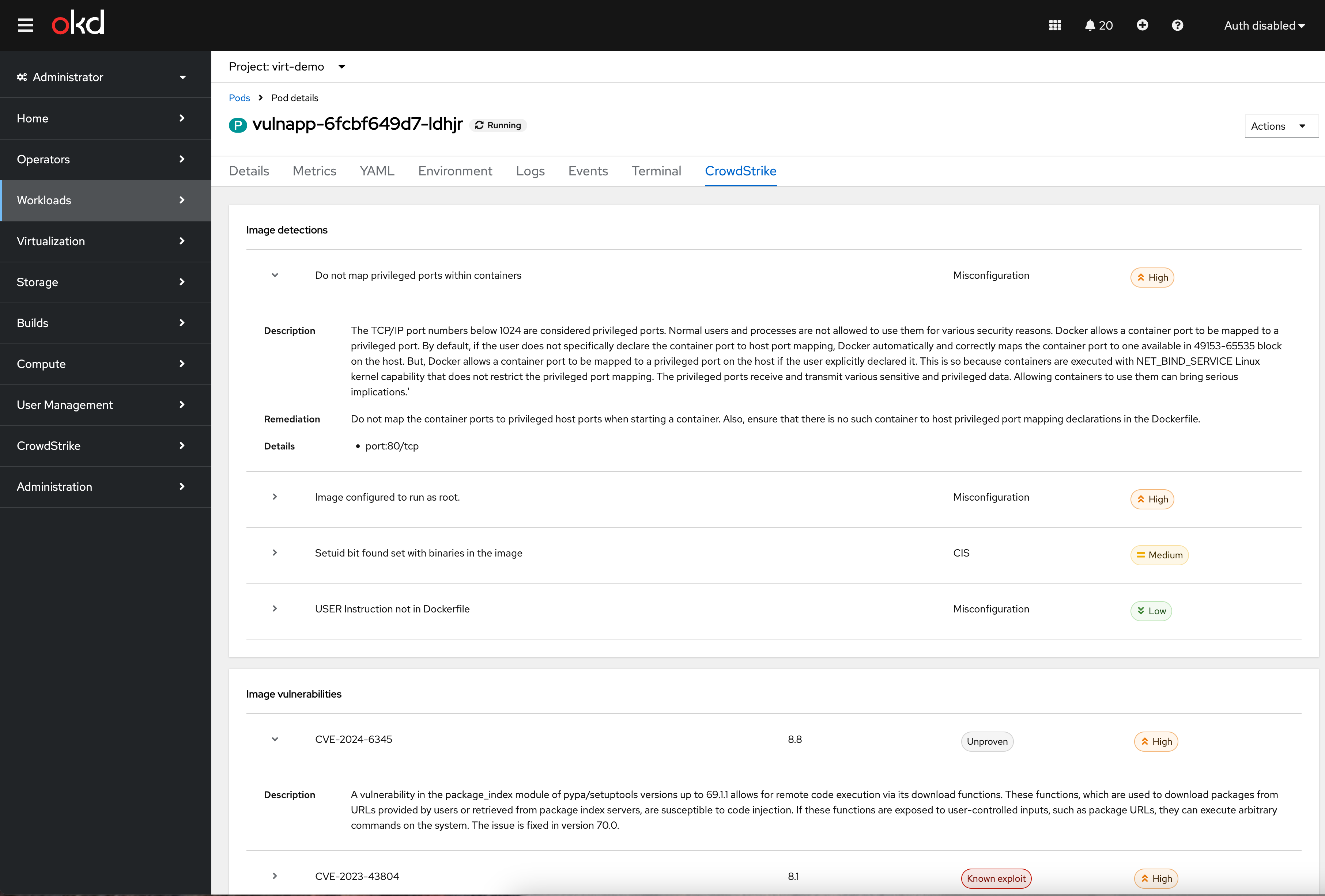

Extension to the Pod page

Support

The Falcon OpenShift Console Plugin is an open source project, not a CrowdStrike product. As such, it carries no formal support, expressed or implied.

Deployment

Deploy the Helm chart

The Falcon OpenShift Console Plugin is available at quay.io/crowdstrike/falcon-openshift-console-plugin.

Install the chart using the name of the plugin as the Helm release name into a new namespace or an existing namespace as specified by the plugin_console-plugin-template parameter by using the following command:

helm upgrade -i  falcon-openshift-console-plugin charts/openshift-console-plugin -n falcon-openshift-console-plugin --create-namespace --set plugin.image=quay.io/crowdstrike/falcon-openshift-console-plugin:latest

[!NOTE]
When defining i18n namespace, adhere plugin__<name-of-the-plugin> format. The name of the plugin should be extracted from the consolePlugin declaration within the package.json file.

Configuration

Create a CrowdStrike API client with the following permissions:
- Alerts: Read
- Hosts: Read
- Vulnerabilities: Read
- Falcon Container Image: Read
In the same namespace as virtual machine or pod workloads where you want security visibility, create a secret named crowdstrike-api with
the following fields:
- cloud (e.g. us-1)
- client_id
- client_secret

[!NOTE]
This configuration assumes any user with access to read secrets in the chosen namespace should
have access to the API client itself, as well as the related data from the Falcon platform.

If you have multiple namespaces where you want to surface CrowdStrike security data, you will need to configure a crowdstrike-api secret in each.

Development

Node.js and yarn are required
to build and run the example. To run OpenShift console in a container, either
Docker or podman 3.2.0+ and
oc are required.

Option 1: Local

In one terminal window, run:

yarn install
yarn run start

In another terminal window, run:

oc login (requires oc and an OpenShift cluster)
yarn run start-console (requires Docker or podman 3.2.0+)

This will run the OpenShift console in a container connected to the cluster
you've logged into. The plugin HTTP server runs on port 9001 with CORS enabled.
Navigate to http://localhost:9000/example to see the running plugin.

Running start-console with Apple silicon and podman

If you are using podman on a Mac with Apple silicon, yarn run start-console
might fail since it runs an amd64 image. You can workaround the problem with
qemu-user-static by running
these commands:

podman machine ssh
sudo -i
rpm-ostree install qemu-user-static
systemctl reboot

Option 2: Docker + VSCode Remote Container

Make sure the
Remote Containers
extension is installed. This method uses Docker Compose where one container is
the OpenShift console and the second container is the plugin. It requires that
you have access to an existing OpenShift cluster. After the initial build, the
cached containers will help you start developing in seconds.

Create a dev.env file inside the .devcontainer folder with the correct values for your cluster:

OC_PLUGIN_NAME=console-plugin-template
OC_URL=https://api.example.com:6443
OC_USER=kubeadmin
OC_PASS=<password>

(Ctrl+Shift+P) => Remote Containers: Open Folder in Container...
yarn run start
Navigate to http://localhost:9000/example

i18n

The plugin template demonstrates how you can translate messages in with react-i18next. The i18n namespace must match
the name of the ConsolePlugin resource with the plugin__ prefix to avoid
naming conflicts. For example, the plugin template uses the
plugin__console-plugin-template namespace. You can use the useTranslation hook
with this namespace as follows:

conster Header: React.FC = () => {
  const { t } = useTranslation('plugin__console-plugin-template');
  return <h1>{t('Hello, World!')}</h1>;
};

For labels in console-extensions.json, you can use the format
%plugin__console-plugin-template~My Label%. Console will replace the value with
the message for the current language from the plugin__console-plugin-template
namespace. For example:

{
  "type": "console.navigation/section",
  "properties": {
    "id": "admin-demo-section",
    "perspective": "admin",
    "name": "%plugin__console-plugin-template~Plugin Template%"
  }
}

Running yarn i18n updates the JSON files in the locales folder of the
plugin template when adding or changing messages.

Linting

This project adds prettier, eslint, and stylelint. Linting can be run with
yarn run lint.

The stylelint config disallows hex colors since these cause problems with dark
mode (starting in OpenShift console 4.11). You should use the
PatternFly global CSS variables
for colors instead.

The stylelint config also disallows naked element selectors like table and
.pf- or .co- prefixed classes. This prevents plugins from accidentally
overwriting default console styles, breaking the layout of existing pages. The
best practice is to prefix your CSS classnames with your plugin name to avoid
conflicts. Please don't disable these rules without understanding how they can
break console styles!

Reporting

Steps to generate reports

In command prompt, navigate to root folder and execute the command yarn run cypress-merge
Then execute command yarn run cypress-generate
The cypress-report.html file is generated and should be in (/integration-tests/screenshots) directory
