Hybrid SD: Edge-Cloud Collaborative Inference for Stable Diffusion Models

Introduction

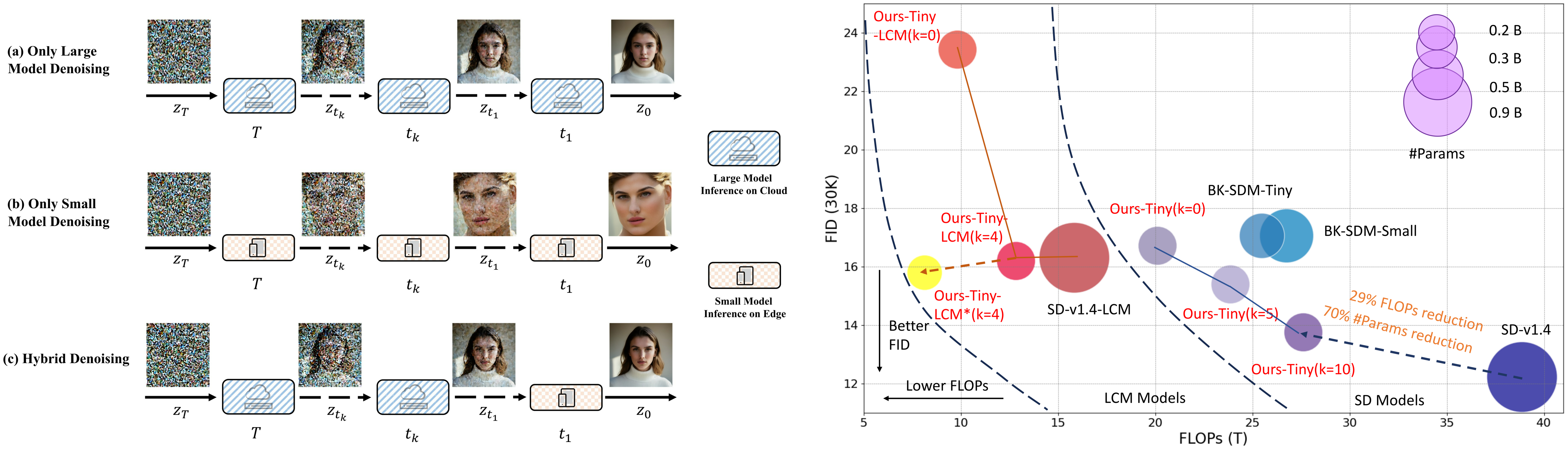

Hybrid SD is a novel framework designed for edge-cloud collaborative inference of Stable Diffusion Models. By integrating the superior large models on cloud servers and efficient small models on edge devices, Hybrid SD achieves state-of-the-art parameter efficiency on edge devices with competitive visual quality.

Installation

conda create -n hybrid_sd python=3.9.2
conda activate hybrid_sd
pip install -r requirements.txt

Pretrained Models

We provide a number of pretrained models as follows:

• Ours pruned U-Net (224M): hybrid-sd-224m
• Ours tiny VAE: hybrid-sd-tinyvae and SDXL version: hybrid-sd-tinyvae-xl. Additionaly, we provide the decoder pruned version (speed up 20%+) of SD1.5 hybrid-sd-small-vae and the SDXL hybrid-sd-small-vae-xl. Visual results can be found on Results.
• SD-v1.4 and Ours pruned LCM (224M) hybrid-sd-v1-4-lcm-224

Hybrid Inference

SD Models

To use hybrid SD for inference, you can launch the scripts/hybrid_sd/hybird_sd.sh, please specify the large and small models. For hybrid inference for SDXL models, please refer to scripts/hybrid_sd/hybird_sdxl.sh accordingly.

<details>
<summary>
Optional arguments
</summary>

• PATH_MODEL_LARGE: the large model path.
• PATH_MODEL_SMALL: the small model path.
• --step: the steps distributed to different models. (e.g., "10,15" means the first 10 steps are distributed to the large model, while the last 15 steps are shifted to the small model.)
• --seed: the random seed.
• --img_sz: the image size.
• --prompts_file: put prompts in the .txt file.
• --output_dir: the output directory for saving generated images.
  </details>

Latent Consistency Models (LCMs)

To use hybrid SD for LCMs, you can launch the scripts/hybrid_sd/hybird_lcm.sh and specify the large model and small model. You also need to pass TEACHER_MODEL_PATH to load VAE, tokenizer, and Text Encoder.

Evaluation on MS-COCO Benchmark

• Evaluate hybrid inference with SD Models on MS-COCO 2014 30K.

  bash scripts/hybrid_sd/generate_dpm_eval.sh

• Evaluate hybrid inference with LCMs on MS-COCO 2014 30K.

  bash scripts/hybrid_sd/generate_lcm_eval.sh

Training

Pruning U-Net

# pruning U-Net through significance score.
bash scripts/prune_sd/prune_tiny.sh

# finetuning the pruned U-Net.
bash scripts/prune_sd/kd_finetune_tiny.sh

Following BK-SDM, we use the dataset preprocessed_212k.

Training our lightweight VAE

bash scripts/optimize_vae/train_tinyvae.sh

<details>
<summary>
Note
</summary>

• We use datasets from Laion_aesthetics_5plus_1024_33M.
• We optimize VAE with LPIPS loss and adversarial loss.
• We adopt the discriminator from StyelGAN-t along with several data augmentation and degradation techniques for VAE enhancement.
  </details>

Training LCMs

Training accelerated Latent consistency models (LCM) using the following scripts.

1. Distilling SD models to LCMs

bash scripts/hybrid_sd/lcm_t2i_sd.sh

2. Distilling Pruned SD models to LCMs

bash scripts/hybrid_sd/lcm_t2i_tiny.sh

Results

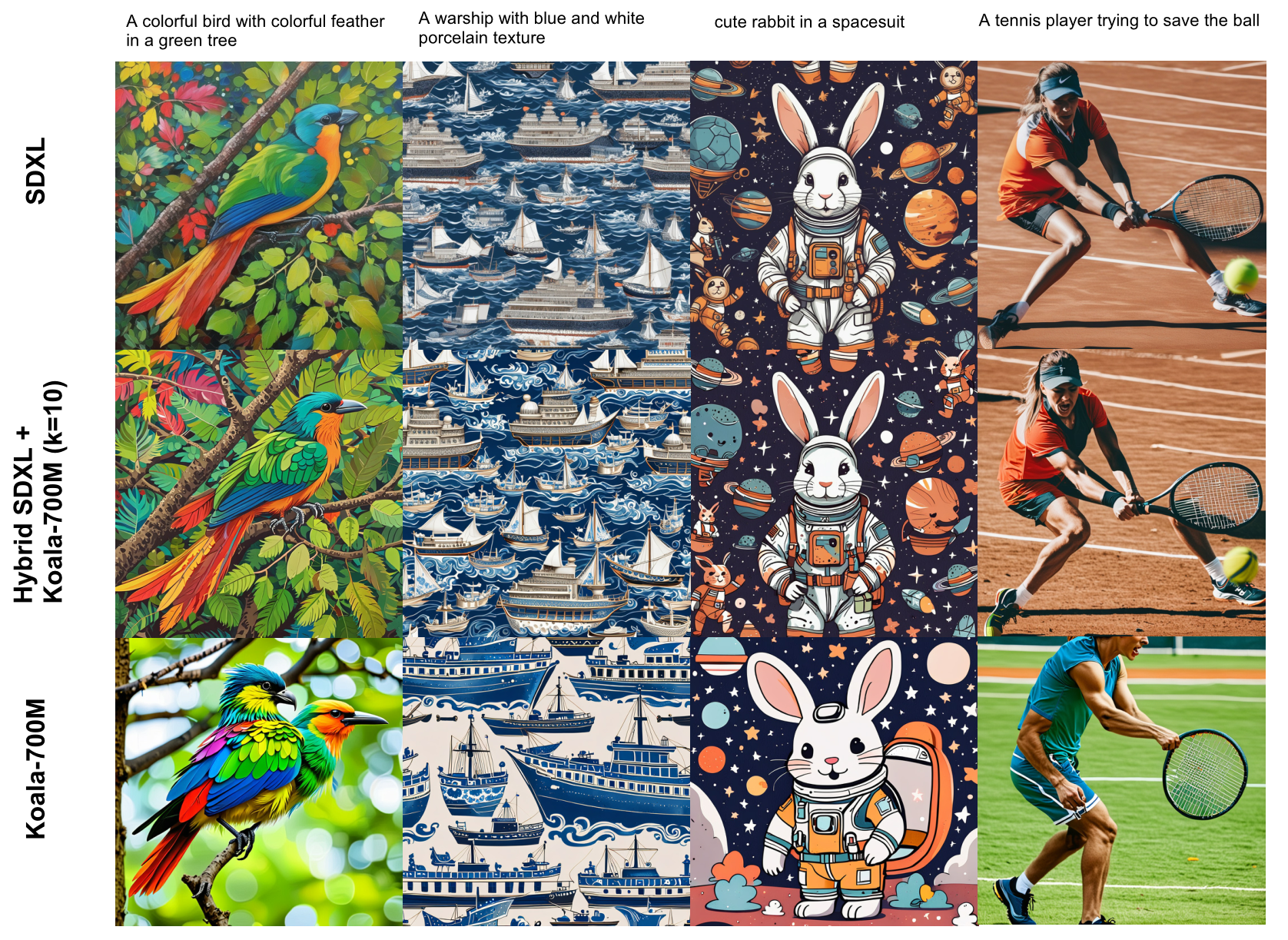

Hybrid SDXL Inference

VAEs

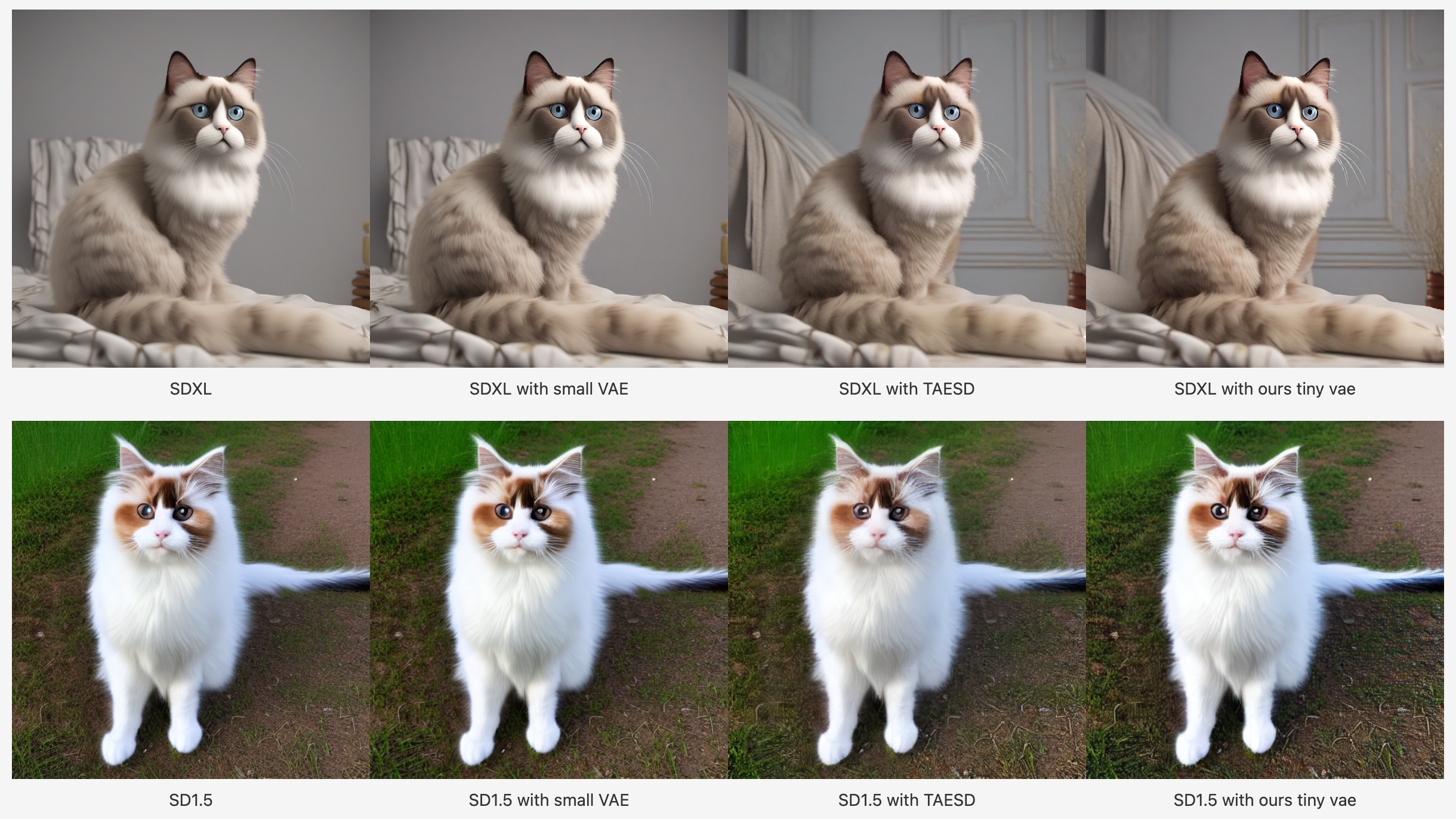

Our tiny VAE vs. TAESD

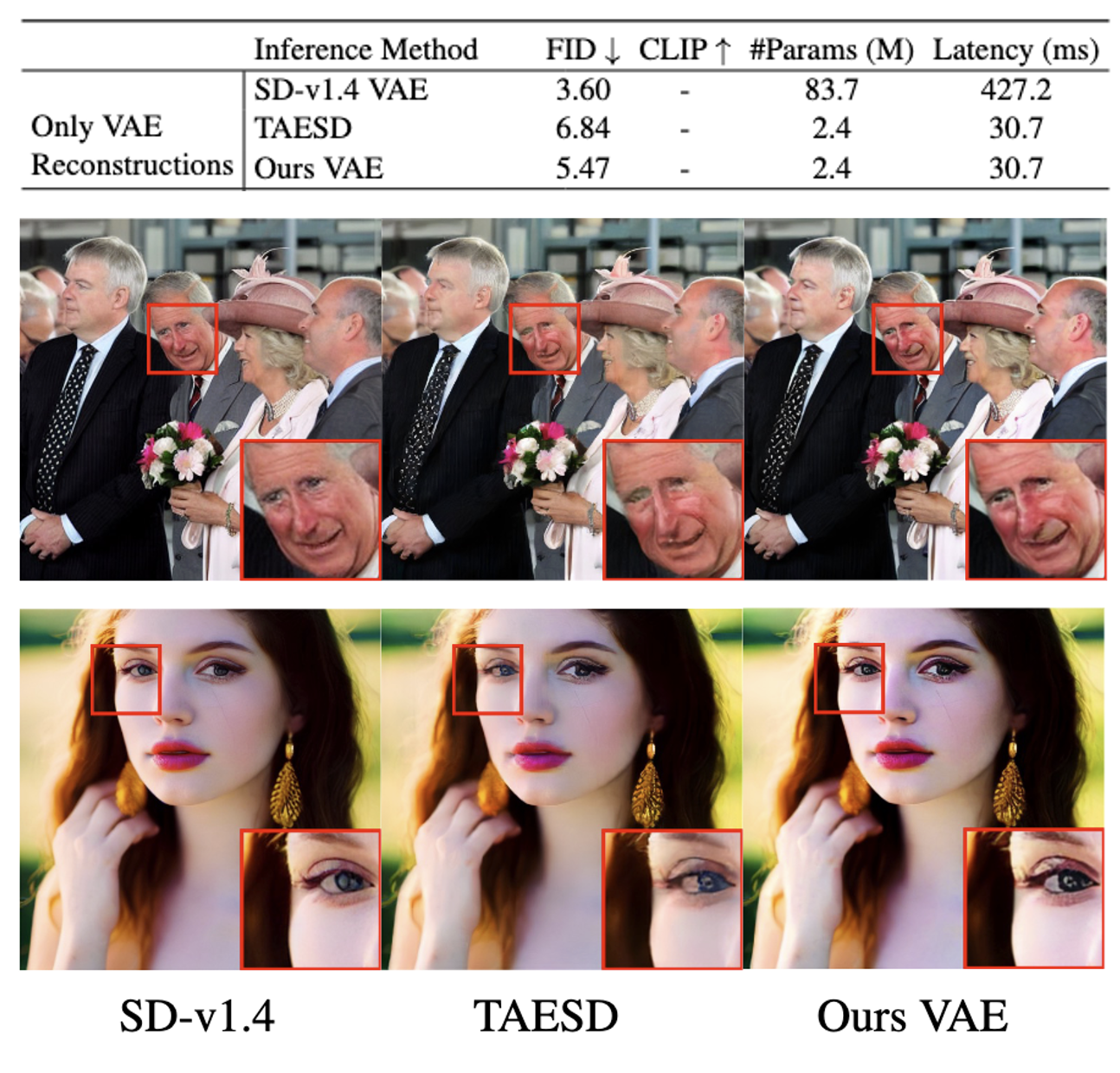

Ours VAE shows better visual quality and detail refinements than TAESD. Ours VAE also achieves better FID scores than TAESD on MSCOCO 2017 5K datasets.

Our small VAE vs. Baseline

Acknowledgments

• CompVis, Runway, and Stability AI for the pioneering research on Stable Diffusion.
• Diffusers, BK-SDM, TAESD for their valuable contributions.

Citation

If you find our work helpful, please cite it!

@article{yan2024hybrid,
  title={Hybrid SD: Edge-Cloud Collaborative Inference for Stable Diffusion Models},
  author={Yan, Chenqian and Liu, Songwei and Liu, Hongjian and Peng, Xurui and Wang, Xiaojian and Chen, Fangming and Fu, Lean and Mei, Xing},
  journal={arXiv preprint arXiv:2408.06646},
  year={2024}
}

License

This project is licensed under the Apache-2.0 License.
